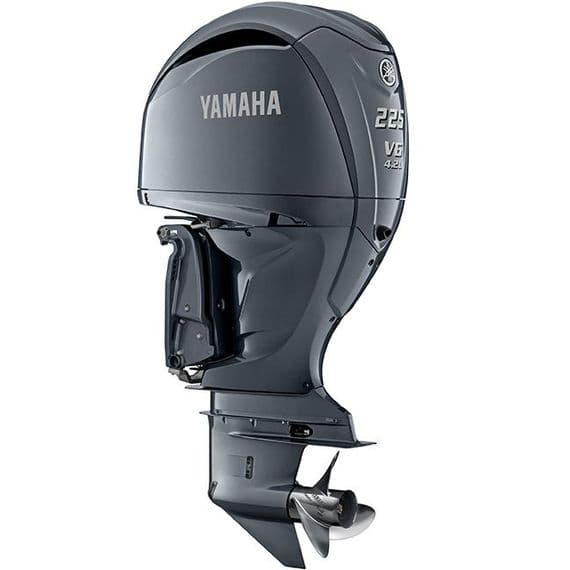

Yamaha F225NCB LU 225HP DBW Counter Rotation Ultra Long Shaft Outboard

The F225, F250 & F300 outboards represent the pinnacle of Yamaha’s latest-generation marine technology. Designed for the demanding offshore environment, these light, compact V6 engines are the ultimate powerhouses to have behind you on your watersports adventures.

For clean, smooth performance, maximum fuel efficiency and easy starting, the advanced 24-valve DOHC engine features EFI (Electronic Fuel Injection) as well as VCT (Variable Camshaft Timing). Combining technology with style, the sleek, compact design speaks for itself.

Meanwhile, at the helm, Yamaha’s ‘drive-by-wire’ electronic throttle and shift delivers the smoothest, most precise control you’ll ever experience.

Technical Engine Specifications:
Engine type: 4-stroke
Displacement: 4169 cm³
No. of cylinders/configuration: V6 (60°), 24-valve, DOHC with VCT
Bore x stroke: 96.0 mm x 96.0 mm
Prop shaft output at mid range: 165.5kW / 5,500 rpm
Full throttle operating range: 5,000 – 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Gear ratio: 1.75 (21/12)

Dimensions:
Recommended boat transom height: U: 770mm
Weight with propeller: F225NCB LU: 268 kg
Oil pan capacity: 6.3 litres

Features:
Control: Drive By Wire Remote Control / Throttle & Gear (DBW RC)
Rotation : Left Hand / Counter Rotation
Starting Method: Electric Start (ES)
Trim & tilt method: Power trim & tilt (PT&T)
Battery Charging:12v – 70A Output
Propeller: Included
